BLT-50-S Heavy-Duty Tube Welding Production Line
High-Performance Welded Pipe Manufacturing Solution for Industrial Applications
TUDE DIAMETER
Φ19.0-76.1 mm
WELDING TECHNOLOGY
Plasma Arc Welding + Electromagnetic Control with Temperature-Stabilized Welding
MATERIAL CAPABILITY
Ferritic stainless steel, austenitic stainless steel, duplex stainless steel, etc
OPERATION MODE
24 Hours Continuous
BLT-50-S
BLT-50-S Heavy-Duty Tube Welding Production Line
Zhongyong BLT-50-S Heavy-Duty Tube Welding Production Line is designed for manufacturers requiring stable, efficient, and precise welded tube production.
With advanced forming technology, reliable welding systems, and intelligent automation control, the BLT-50-S provides a complete solution for producing high-quality round tubes used in automotive, industrial equipment, construction, energy, and other industries.
Designed for continuous industrial operation, this tube welding production line delivers excellent tube accuracy, stable welding performance, and long-term production reliability.

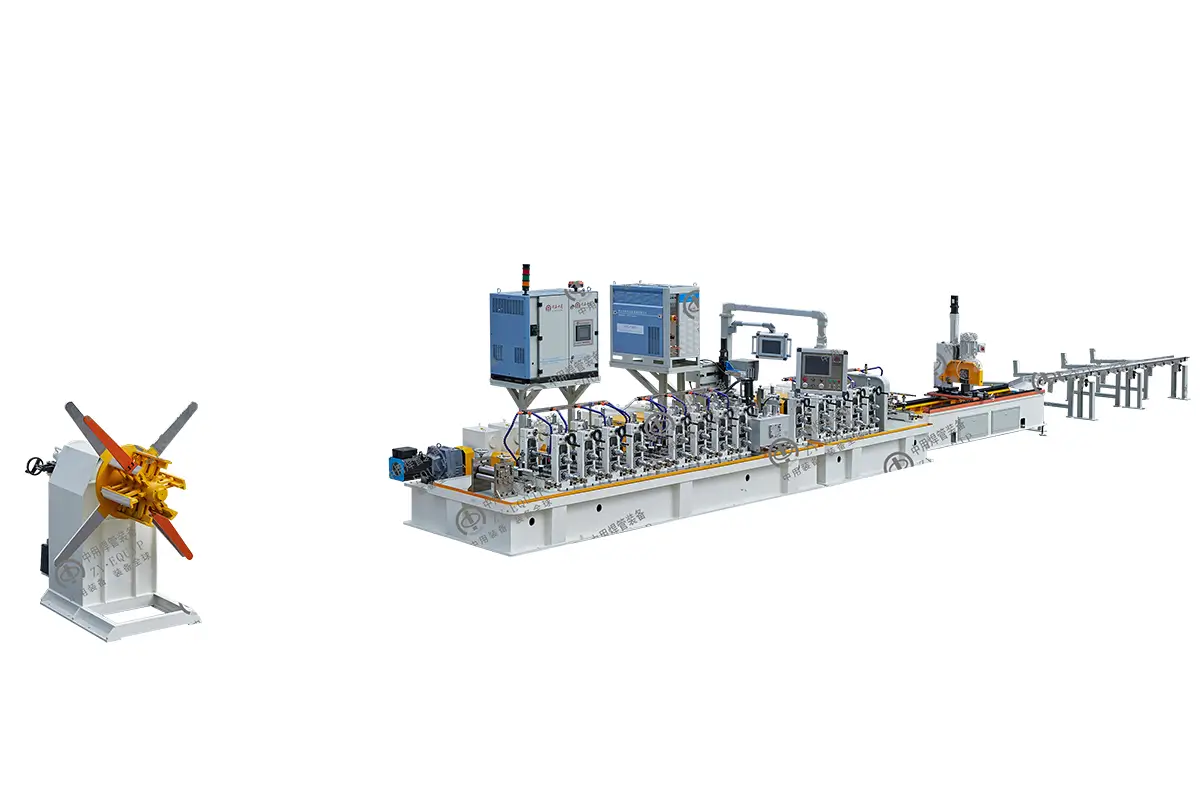

Complete Tube Mill Production System

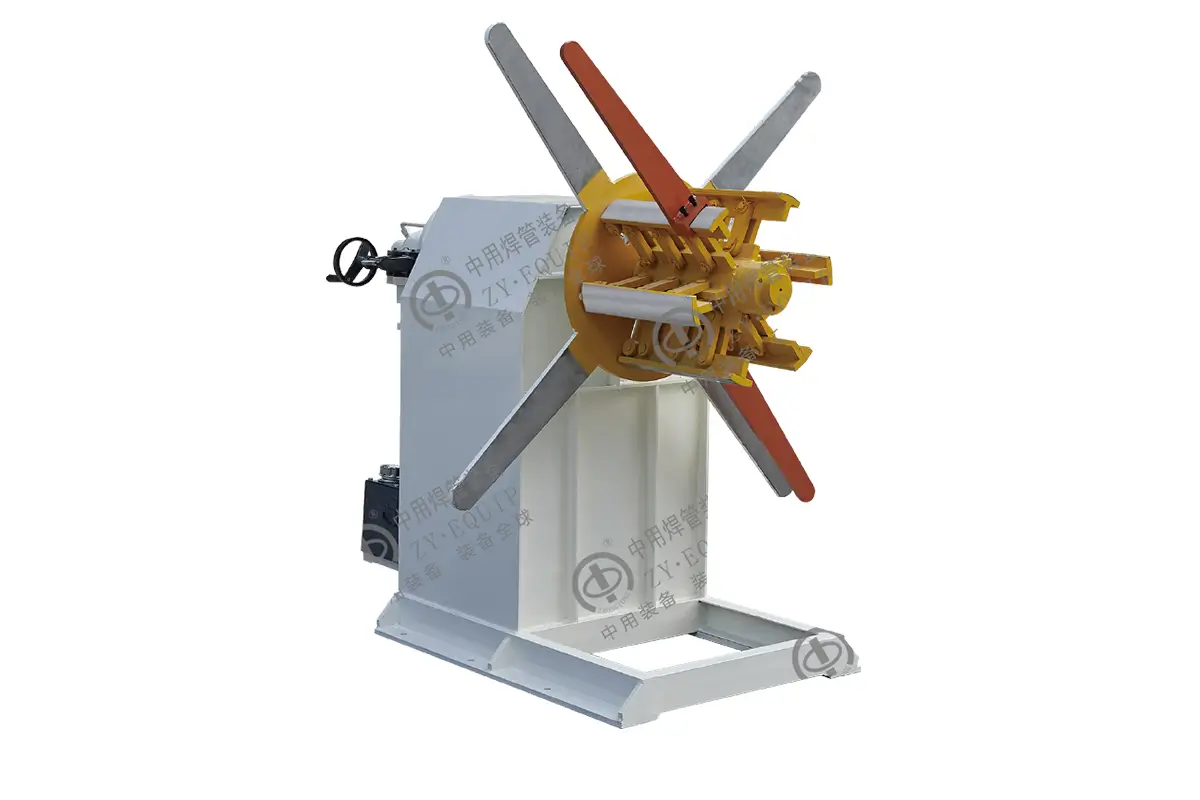

Uncoiler

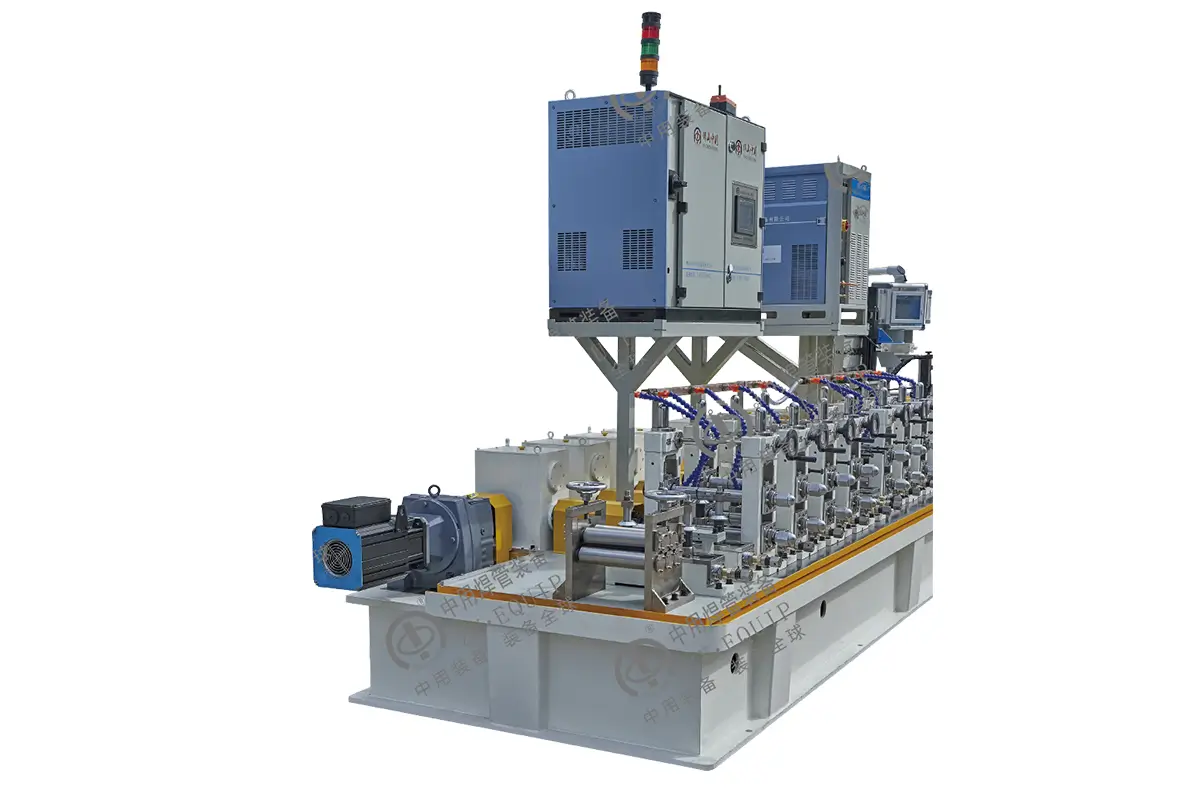

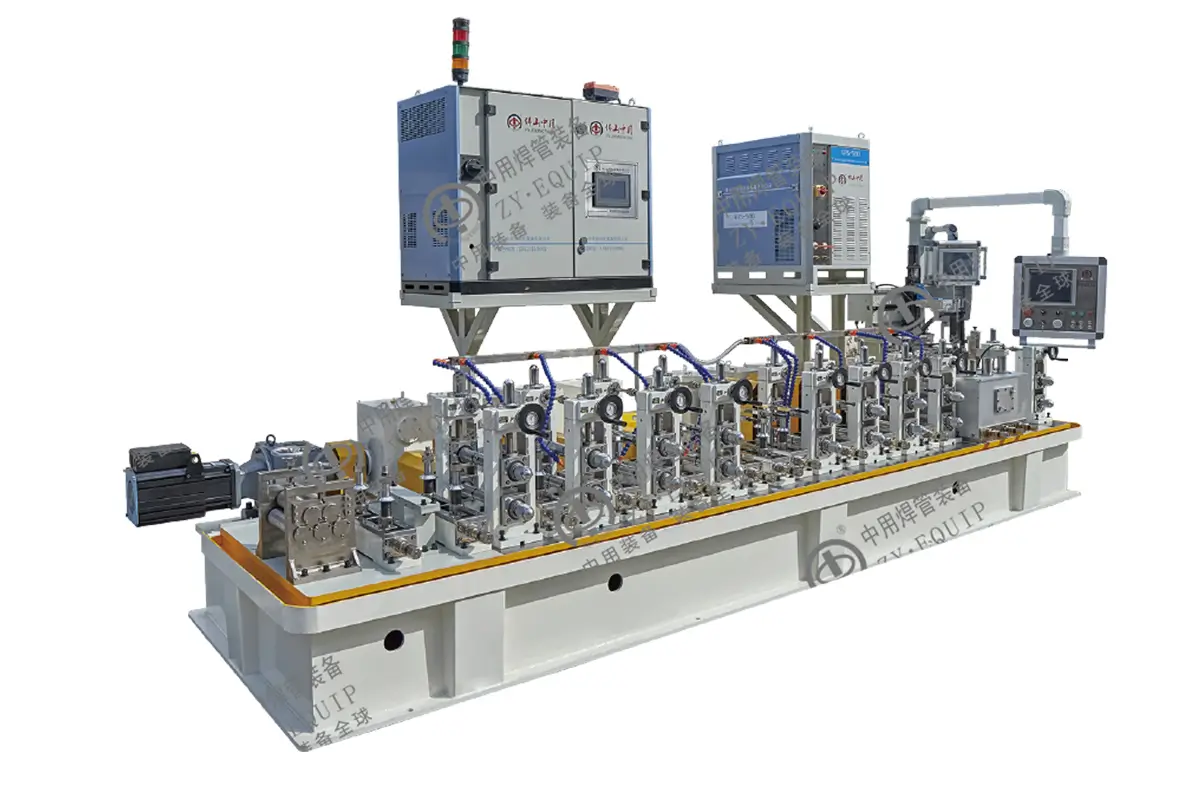

High-Precision Production

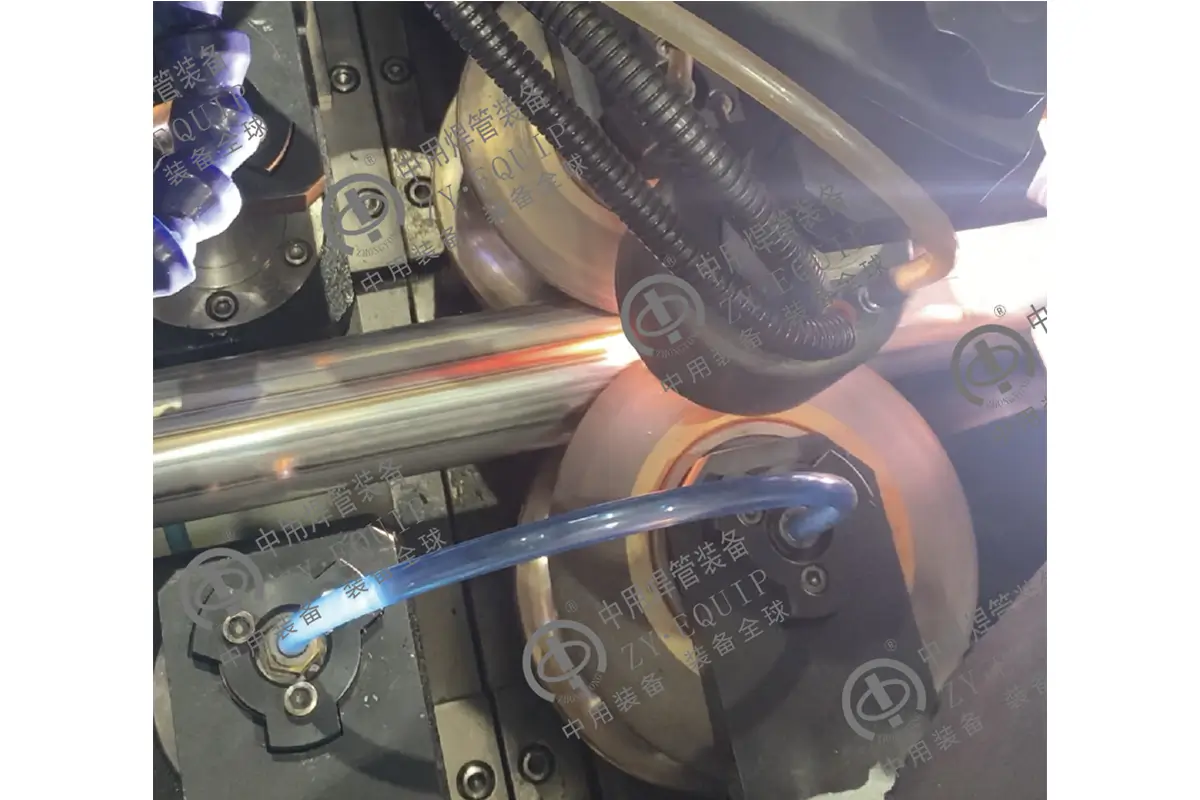

Welding

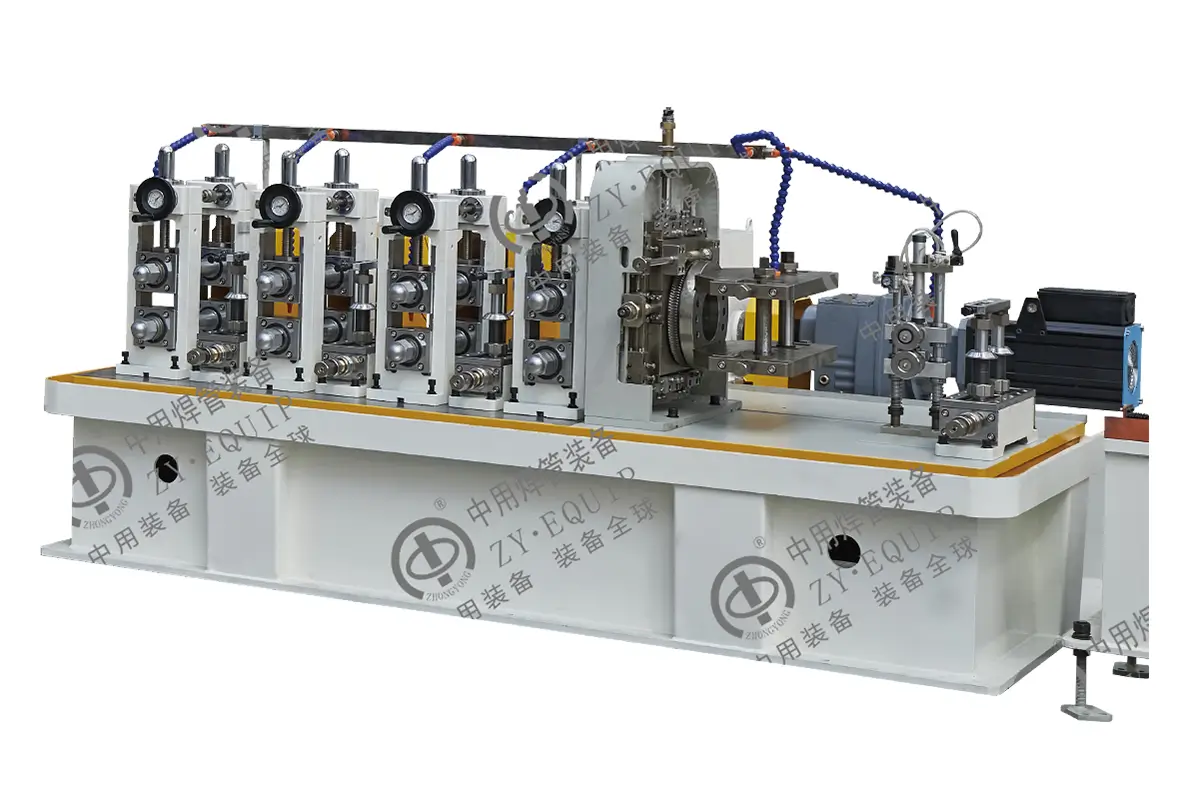

Grinding section

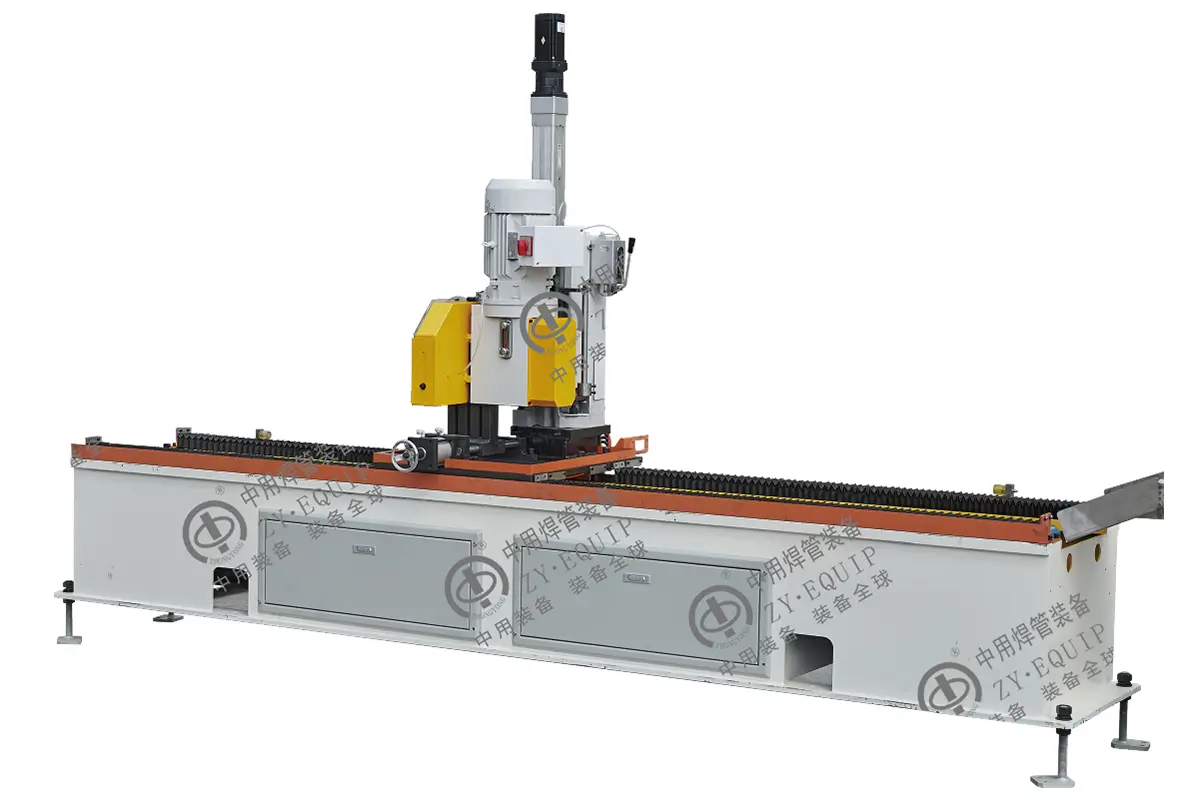

Measuring Cutting
Technical Specifications
Basic Information
| Model | BLT-50-S |
| Machine Grade | High-End Precision Type |
| Operating Mode | 24-Hour Continuous Operation |
| Pipe Type | Round Pipe |
| Applicable Materials | Ferritic stainless steel, austenitic stainless steel, duplex stainless steel, etc |
Production Capability
| Production Speed | 0-6.0 m/min |
| Pipe Outer Diameter Range | Ø19.0-76.1 mm |
| Pipe Length | 2-6 m |
| Heat Treatment | Not Required |
| Weld Seam Flattening | Not Required |
Welding & Mechanical System
| Welding Method | Plasma Arc Welding + Electromagnetic Control with Temperature-Stabilized Welding |
| Main Drive Motor | Servo Motor |
| Transmission Gearbox | Spiral Bevel Gearbox |
| Drive Motor Power | 11 kW × 2 |
| Horizontal Shaft Diameter | Ø50 mm |
| Vertical Shaft Diameter | Ø35 mm |
| Upper Roll Adjustment | Synchronous Up & Down Adjustment |
WHY CHOOSE BLT-50-S?
Specialized Stainless Steel Tube Processing
Optimized for multiple stainless steel types, offering high forming accuracy and stable tube quality.
Precision Welding Performance
Plasma arc welding with electromagnetic temperature control guarantees reliable weld penetration.
Stable Continuous Operation
Servo motor and spiral bevel gearbox enable precise transmission and stable 24h operation.
Applioations
Automotive Exhaust Tube
Automotive Exhaust Pipe
Ready to Build Your Tube Production Line?
Contact our engineering team today for customized tube mill solutions.
