BWT-457-BNT
Automated Manufacturing System for Ultra-Large Diameter Stainless Steel and Alloy Welded Pipes
TUDE DIAMETER
Φ325.0-457.0 mm
WELDING TECHNOLOGY
Plasma + TIG Welding with Electromagnetic Control
MATERIAL CAPABILITY
Austenitic Stainless Steel, Duplex Stainless Steel, Ferritic Stainless Steel, Titanium & Titanium Alloys
OPERATION MODE
24-hour Continuous Operation
PRODUCT OVERVIEW
BWT-457-BNT Heavy-Duty Tube Mill for Extra Large Diameter Industrial Pipe Production
Our BWT-457-BNT industrial heavy-duty tube forming and welding machine is built to produce extra large-size austenitic stainless steel, duplex stainless steel, ferritic stainless steel and titanium alloy tubes.
Equipped with Plasma + TIG welding system with electromagnetic control, this pipe mill delivers reliable welding quality and stable weld penetration. It adopts black annealing treatment to optimize tube surface condition.
With worm gearbox transmission and three-roll weld seam flattening, the machine supports 24-hour non-stop operation. It can produce tubes from Ø325 to Ø457.0 mm at adjustable speeds of 0.2–1.0 m/min, ideal for mass production of extra large round, square and special-shaped tubes.

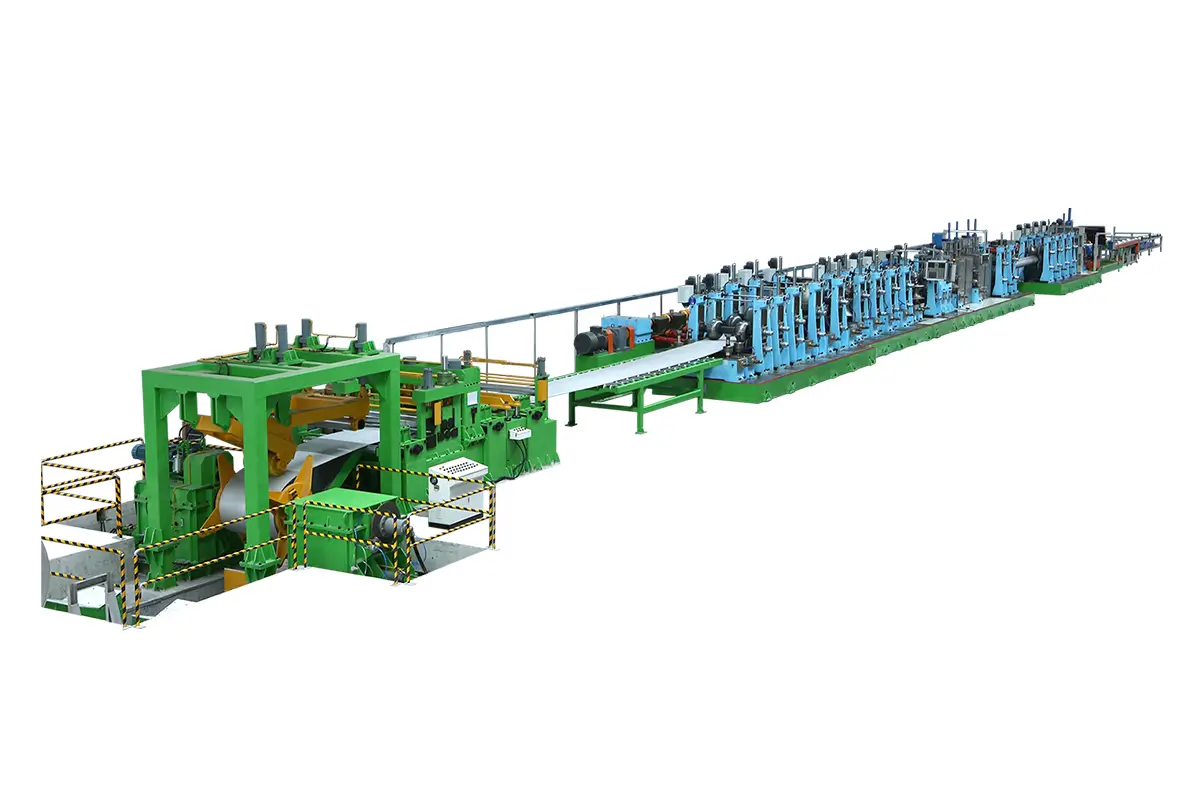

Complete Tube Mill Production System

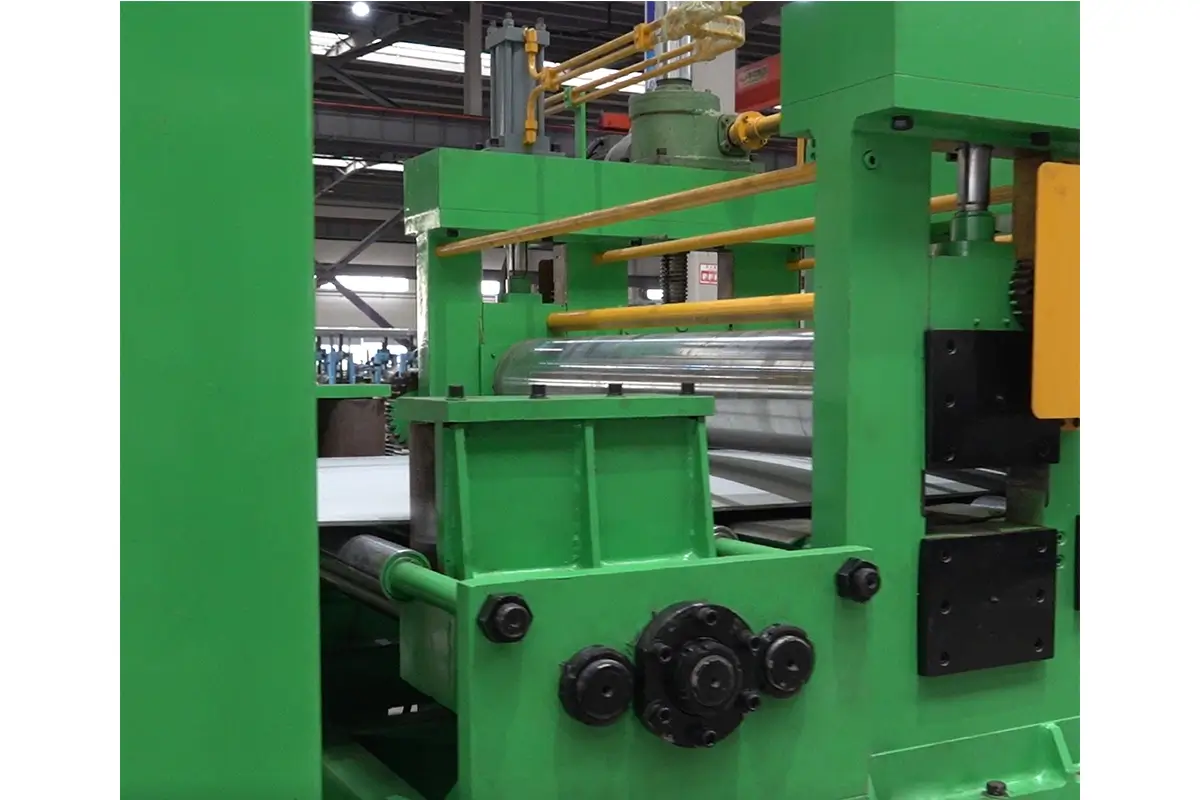

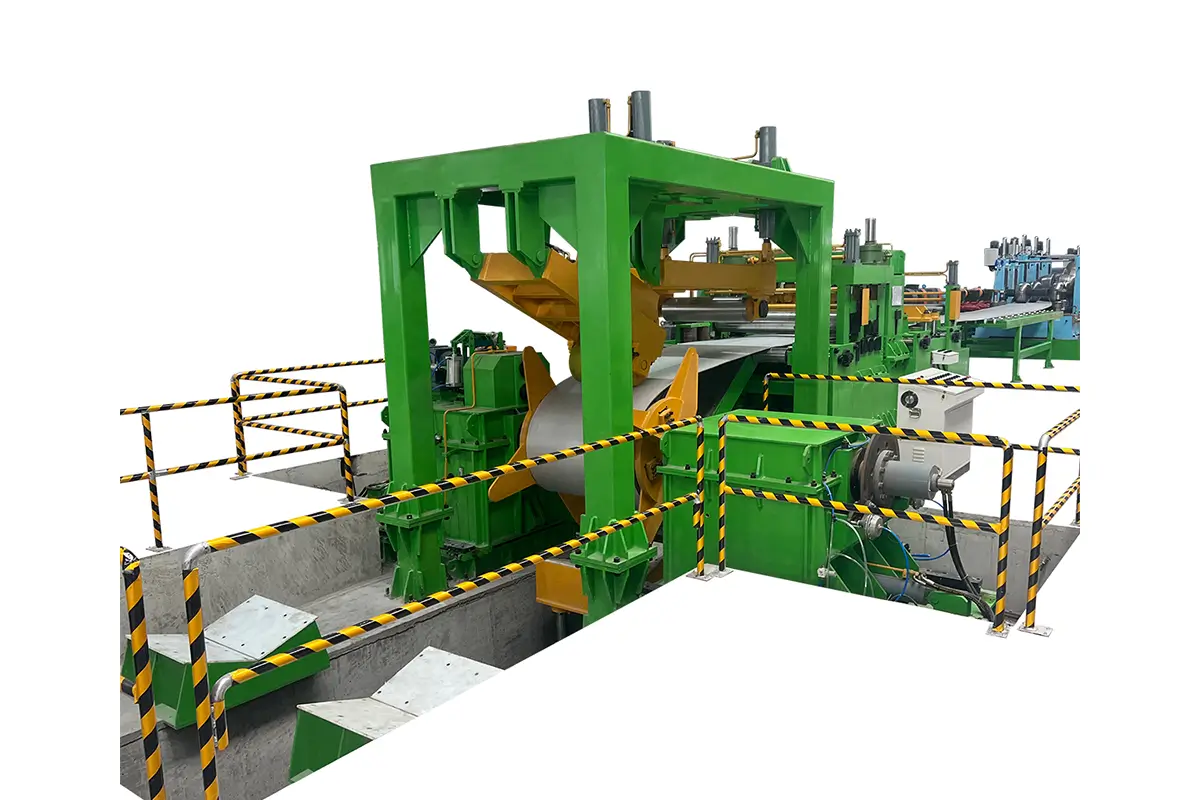

Uncoiler

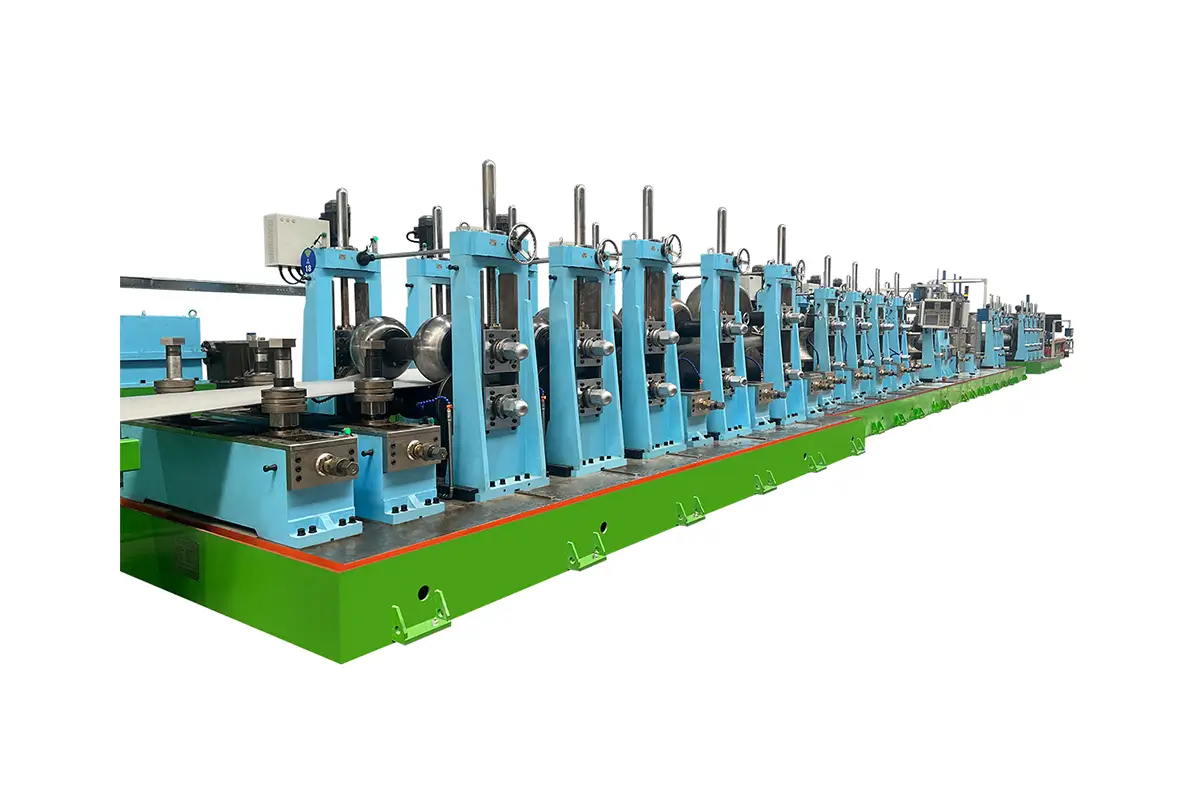

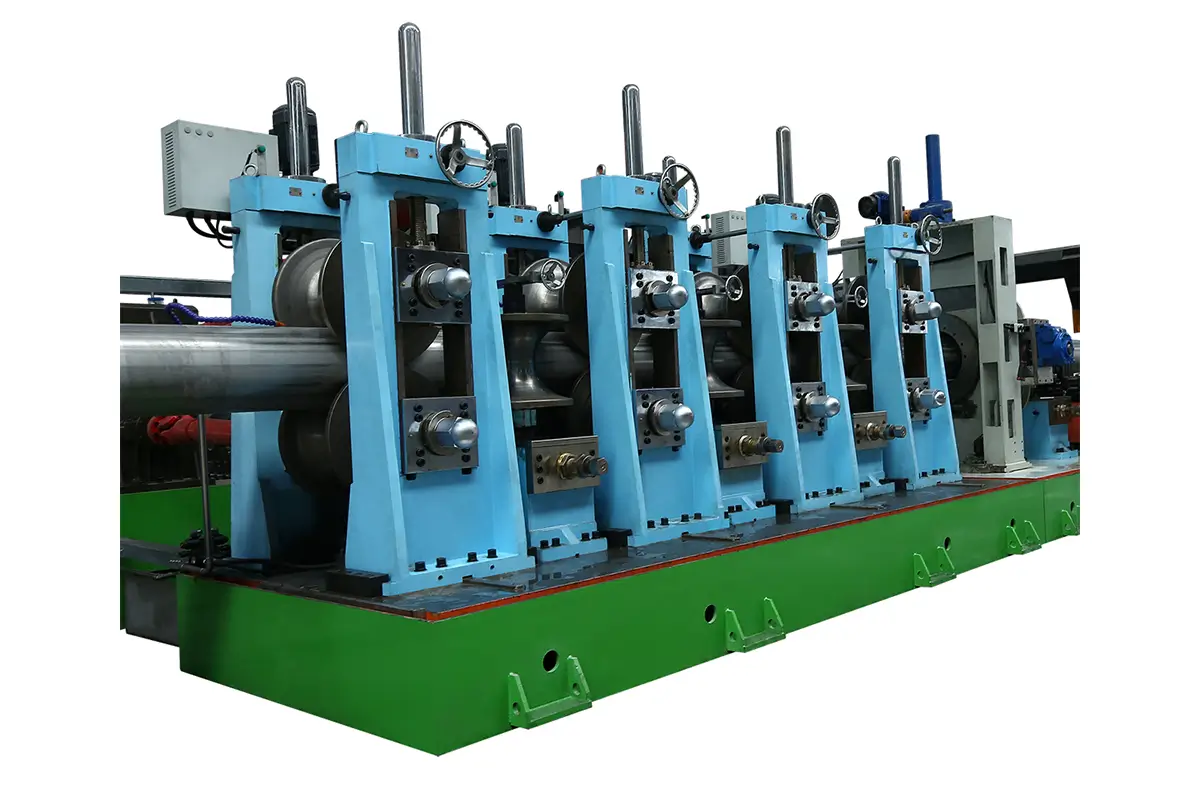

High-Precision Production

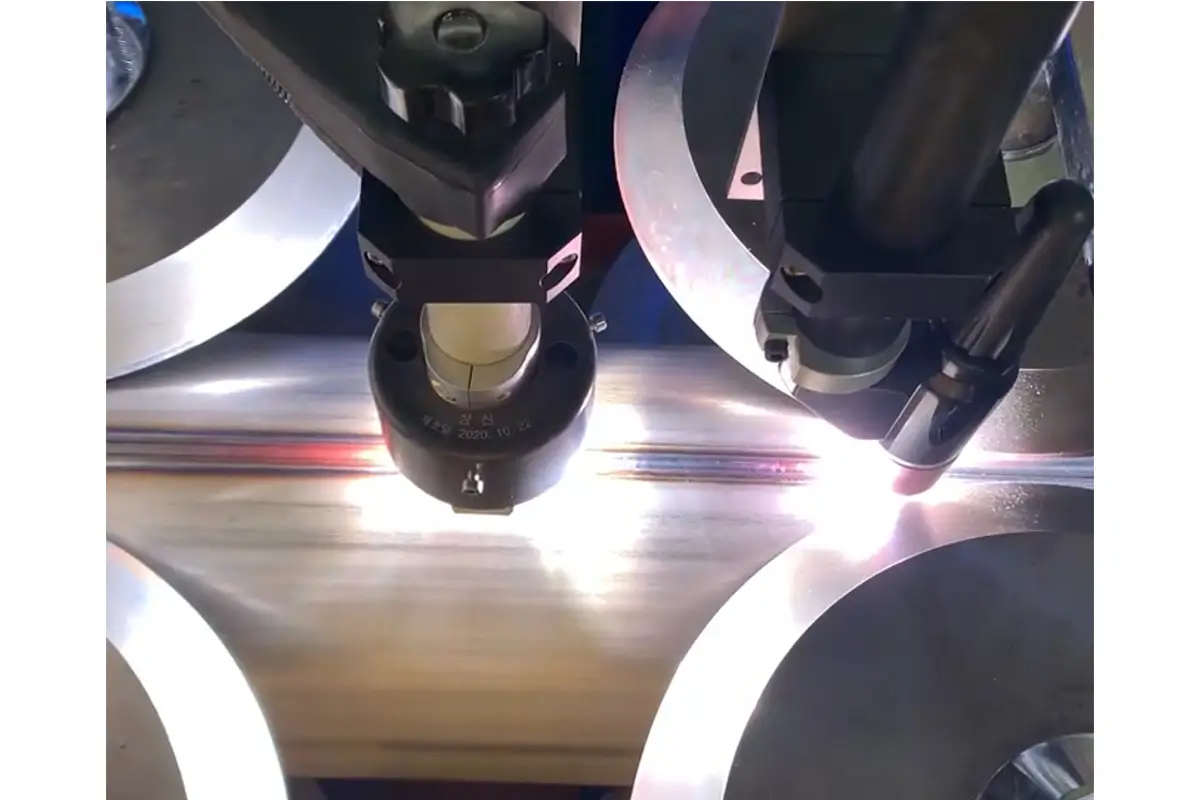

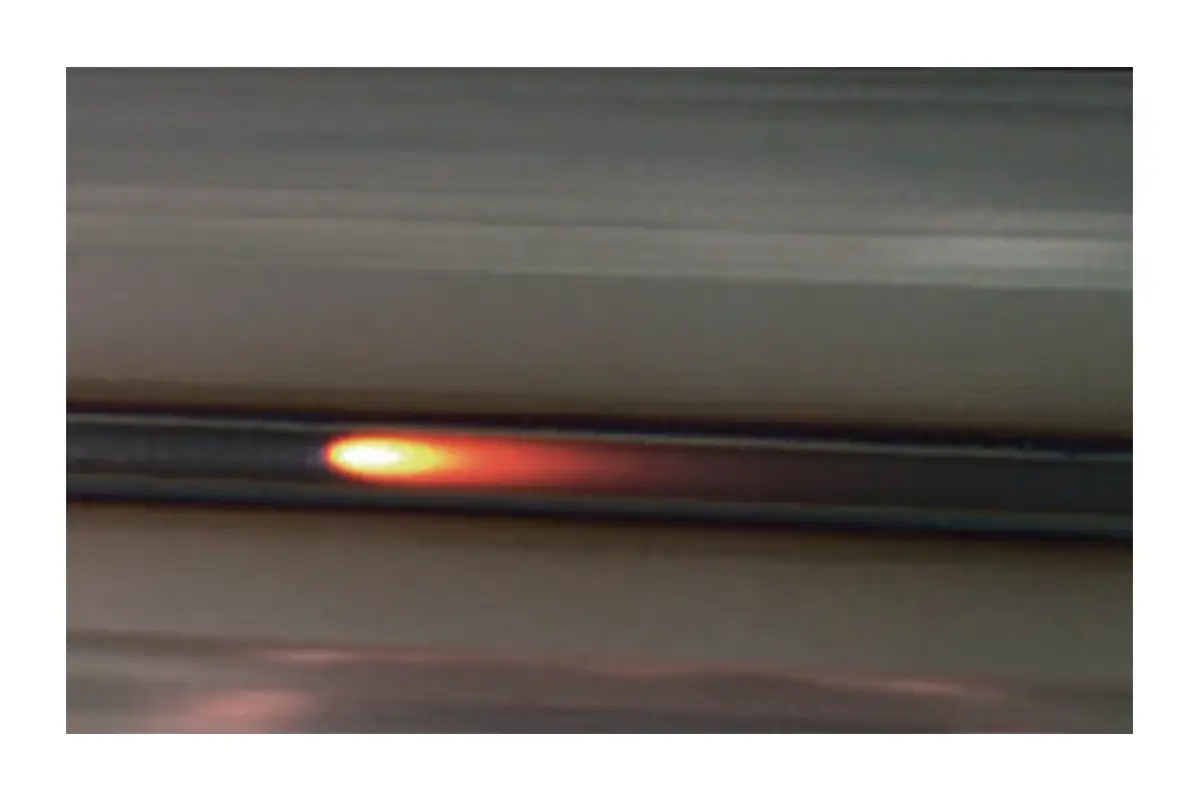

Welding

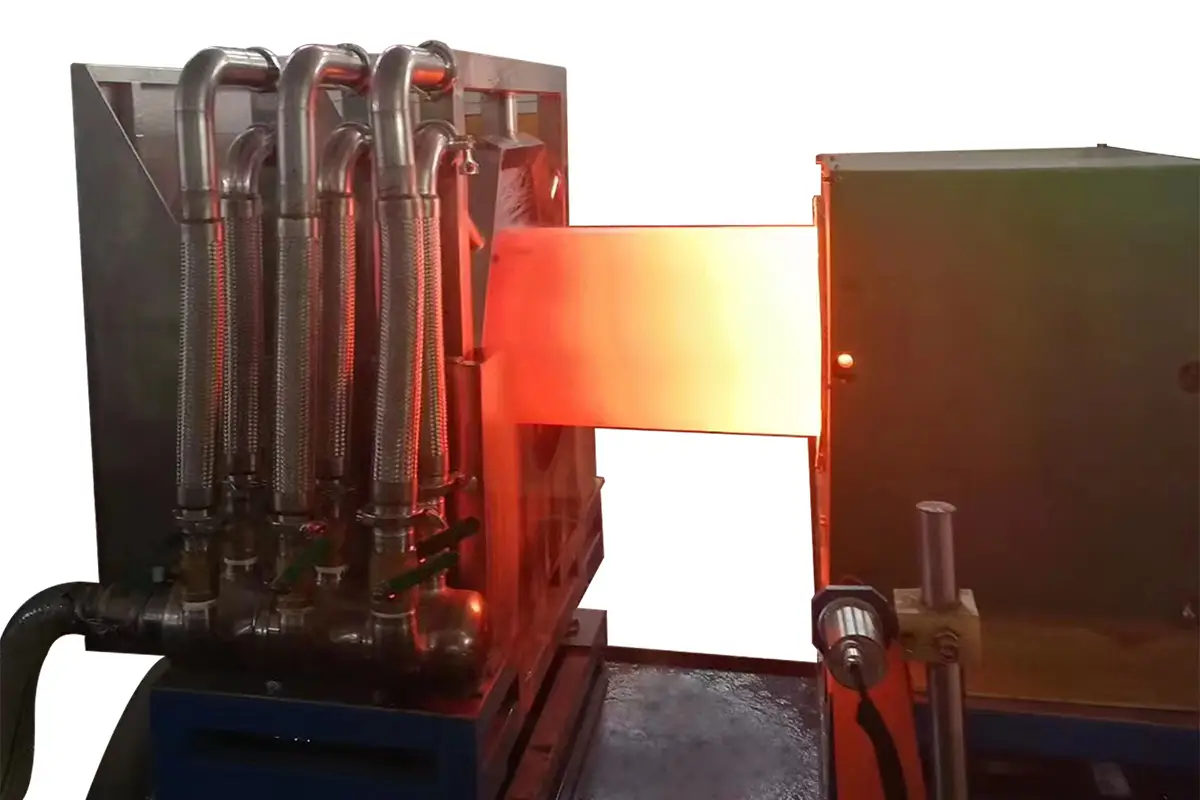

Online Black Annealing

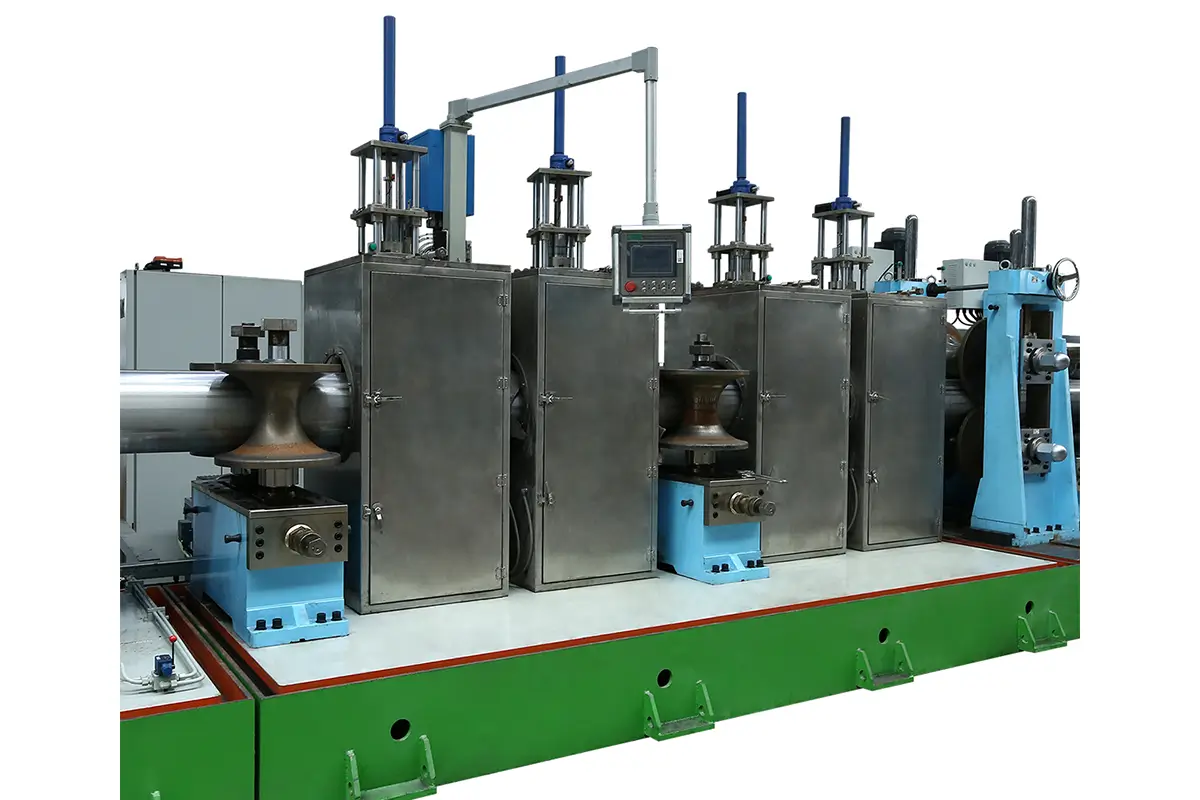

Grinding section

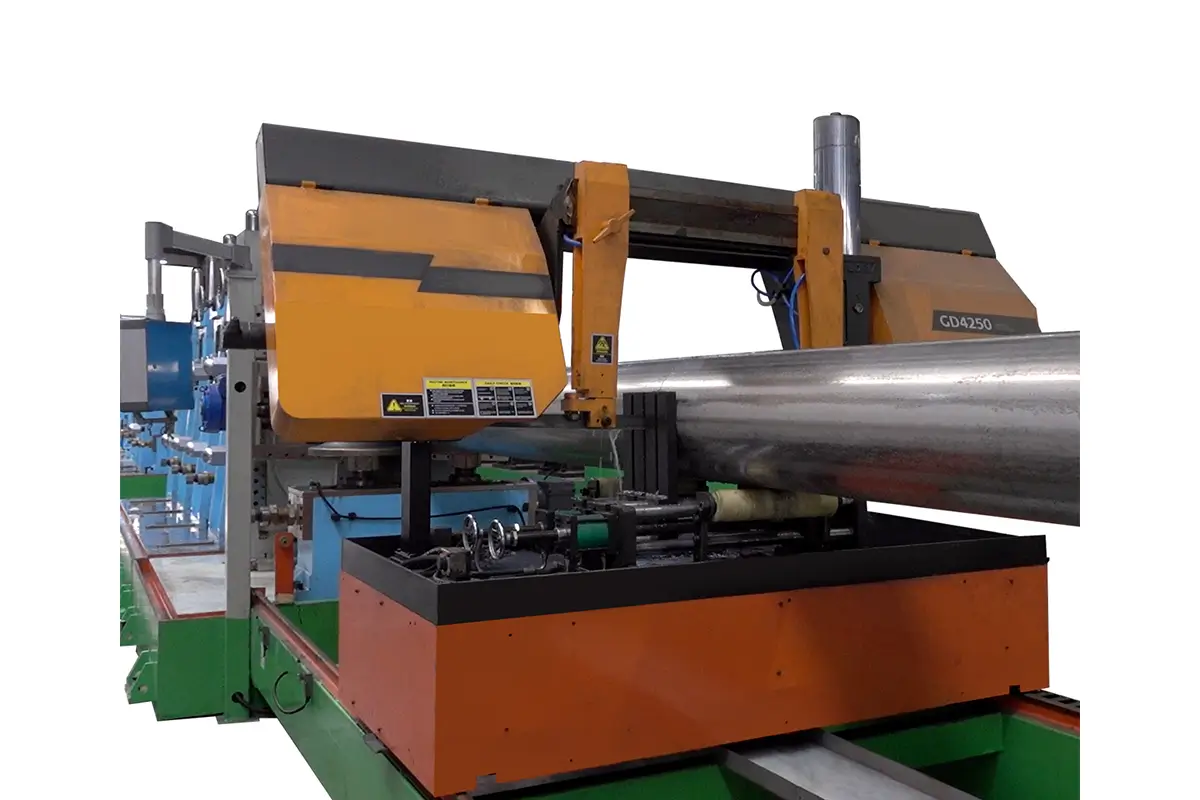

Measuring Cutting
Technical Specifications
| Model | BWT-457-BNT |
|---|---|
| Machine Grade | Industrial Heavy-Duty Type |
| Operating Mode | 24-hour Continuous Operation |
| Pipe Types | Round, Square & Special-Shaped Tubes |
| Applicable Materials | Austenitic Stainless Steel, Duplex Stainless Steel, Ferritic Stainless Steel, Titanium & Titanium Alloys |
| Welding Process | Plasma + TIG Welding with Electromagnetic Control |
| Heat Treatment | Black Annealling |

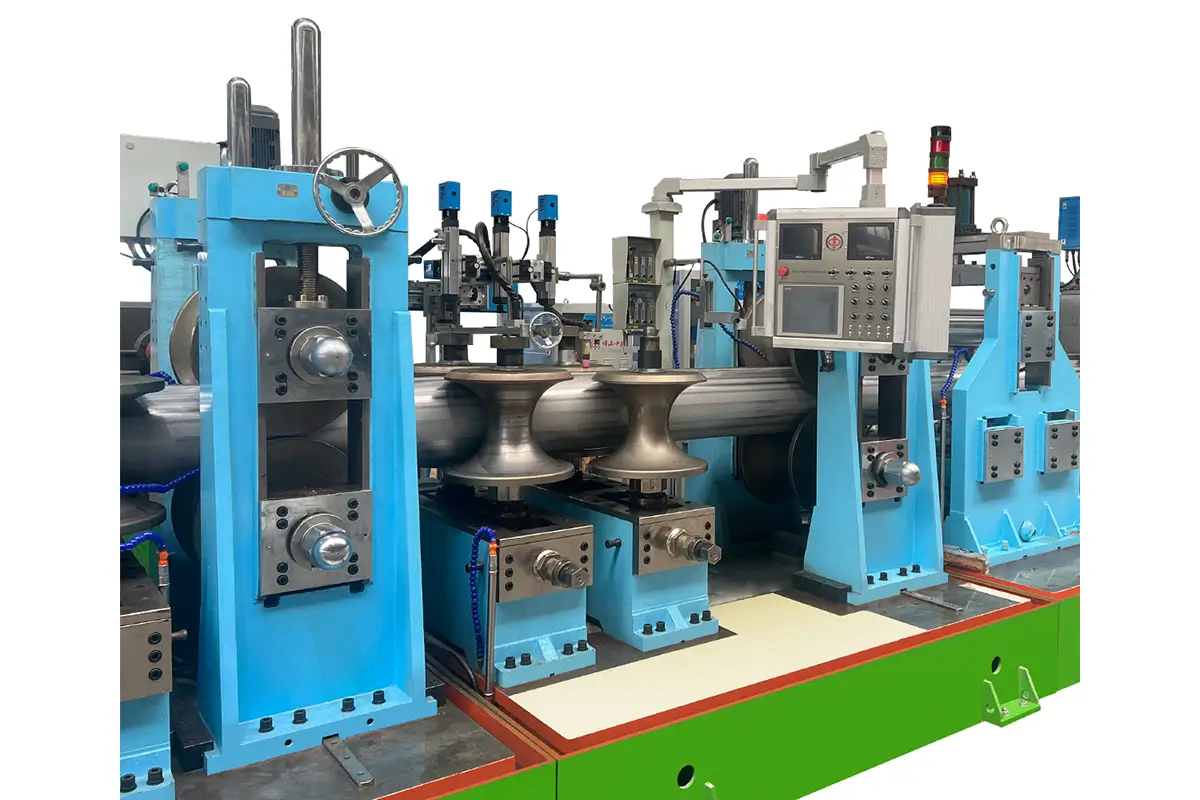

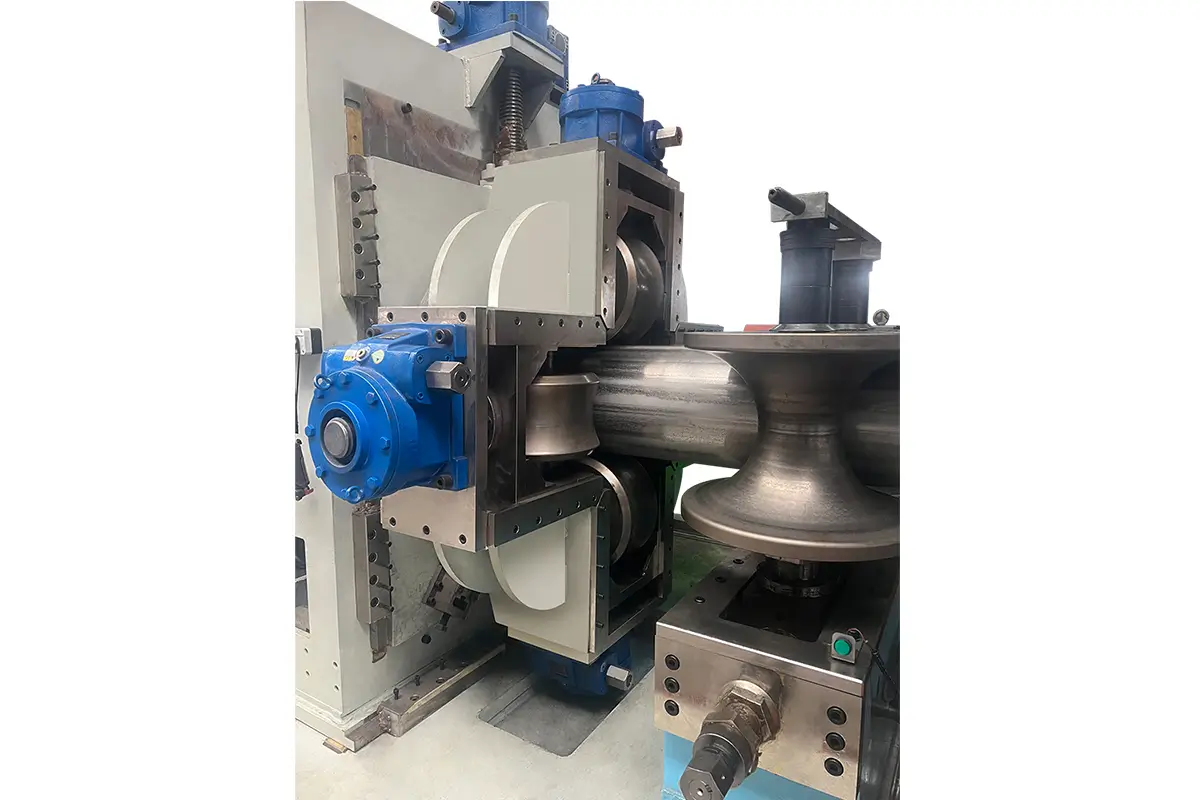

| Weld Seam Flattening | Three-Roll Seam Flattening |
| Main Drive Motor | Variable Frequency Motor |
| Drive Motor Power | 55 kW × 2 |
| Transmission Gearbox | Worm Gearbox |
| Horizontal Shaft Diameter | Ø140 mm |
| Vertical Shaft Diameter | Ø100 mm |
| Upper Roll Adjustment | Synchronous Vertical Adjustment |
| Production Speed Range | 0.2 – 1.0 m/min |
| Tube OD Range | Ø325 – 457.0 mm |
| Tube Length | 3–6 m / 3–12 m |
WHY CHOOSE BWT-457-BNT?
Specialized Stainless Steel Tube Processing
Optimized for stainless steel, duplex steel and titanium alloys, providing excellent forming accuracy and stable extra large-diameter tube quality.
Precision Welding Performance
Advanced Plasma + TIG welding technology with electromagnetic control ensures strong weld penetration and consistent tube production.
High Quality Black Annealing
Black annealing system optimizes tube surface condition and improves corrosion resistance.
Stable Continuous Operation
Three-roll weld seam flattening and worm gearbox ensure accurate transmission and stable 24-hour operation.
Applioations
Titanium and Titanium Alloy Welded Pipes
Structural and Construction Tubes
Oil & Chemical Process Piping
Sanitary-Grade Fluid Pipes
Water & Gas Pipes
Nuclear Power, Aerospace & Marine Tubing
