BWT-219-BNT
Automated Industrial Pipe Manufacturing System for Large-Diameter Stainless Steel and Alloy Tubes
TUDE DIAMETER
Φ127.0-219.10 mm
WELDING TECHNOLOGY
P+T or P+T+T (online double side welding)
MATERIAL CAPABILITY
Austenitic Stainless Steel, Duplex Stainless Steel, Ferritic Stainless Steel, Titanium & Titanium Alloys
OPERATION MODE
24-hour Continuous Operation
BWT-219-BNT
BWT-219-BNT Heavy-Duty Tube Mill for Large Diameter Industrial Pipe Production
Our BWT-219-BNT industrial heavy-duty tube forming and welding machine is built to produce large-size austenitic stainless steel, duplex stainless steel, ferritic stainless steel and titanium alloy tubes.
Equipped with P+T or P+T+T online double-side welding system, this pipe mill delivers reliable welding quality and stable weld penetration. It adopts black annealing treatment to optimize tube surface condition.
With worm gearbox transmission and three-roll weld seam flattening, the machine supports 24-hour non-stop operation. It can produce tubes from Φ127 to Φ219.1 mm at adjustable speeds of 0.3–1.5 m/min, ideal for mass production of large round, square and special-shaped tubes.

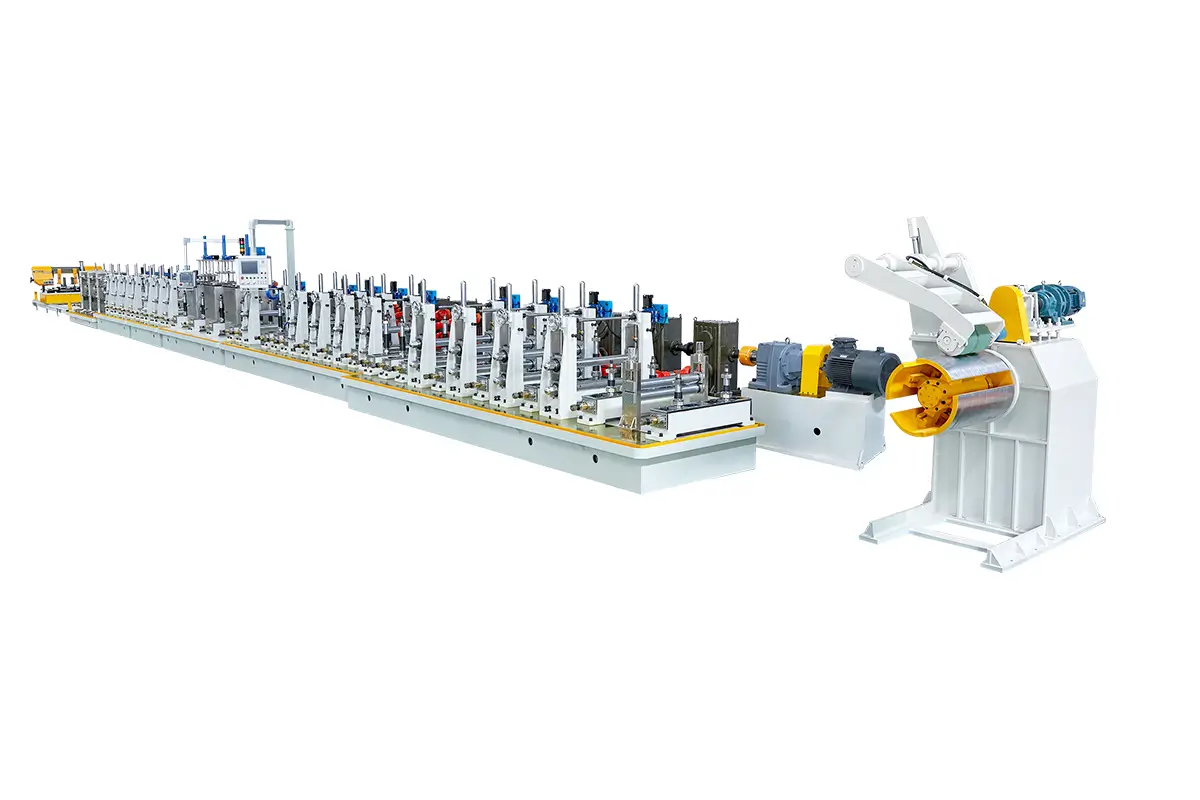

Complete Tube Mill Production System

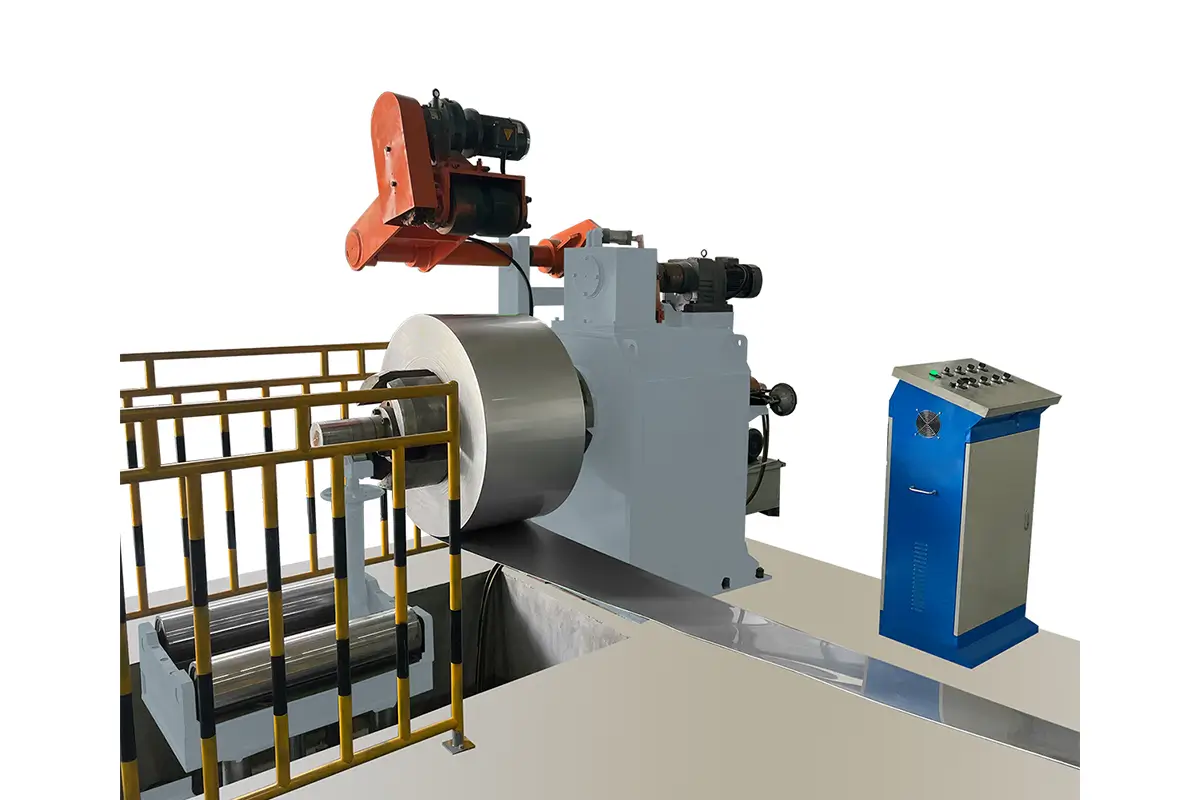

Uncoiler
High-Precision Production

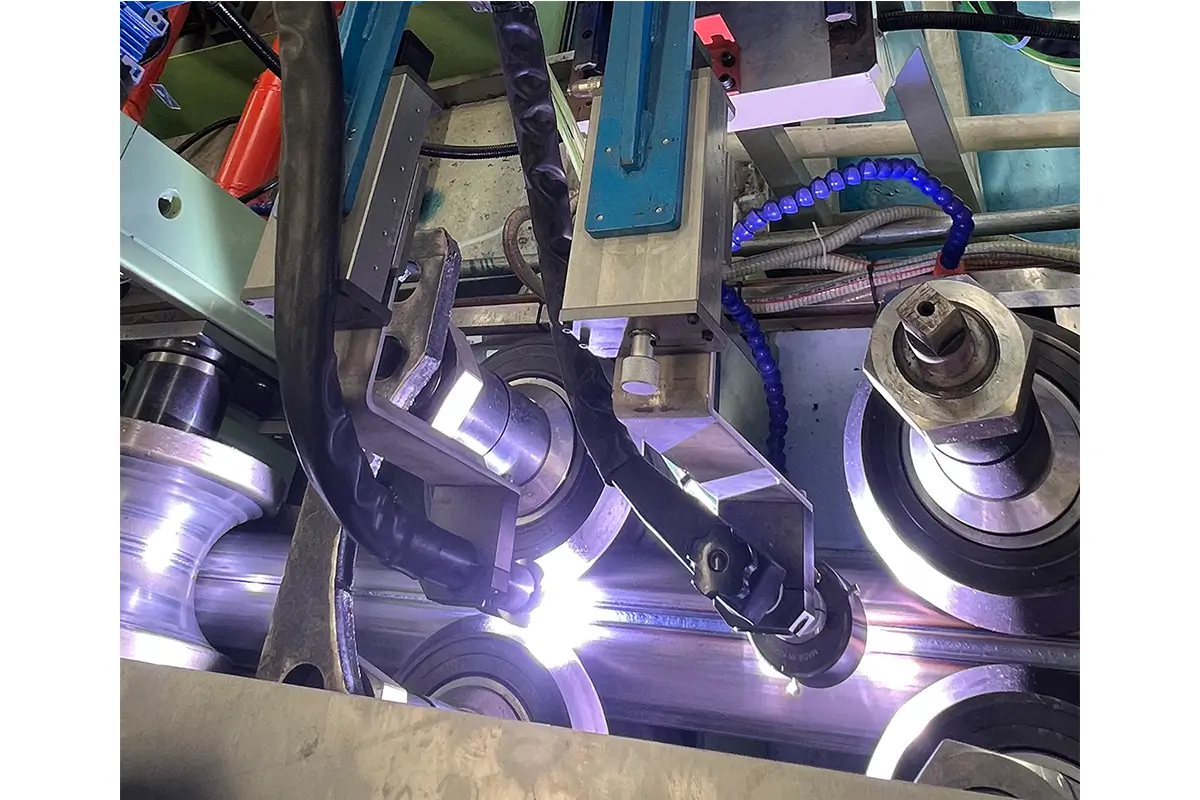

Welding

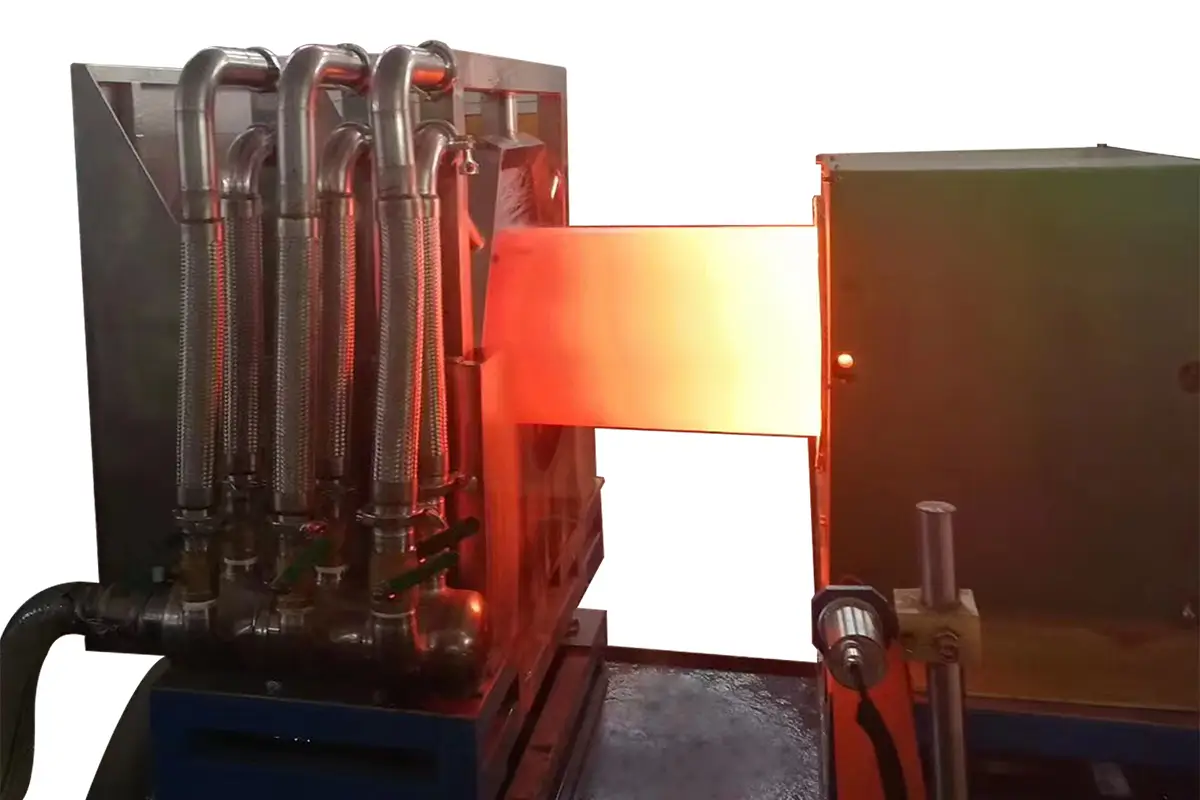

Bright Annealing System

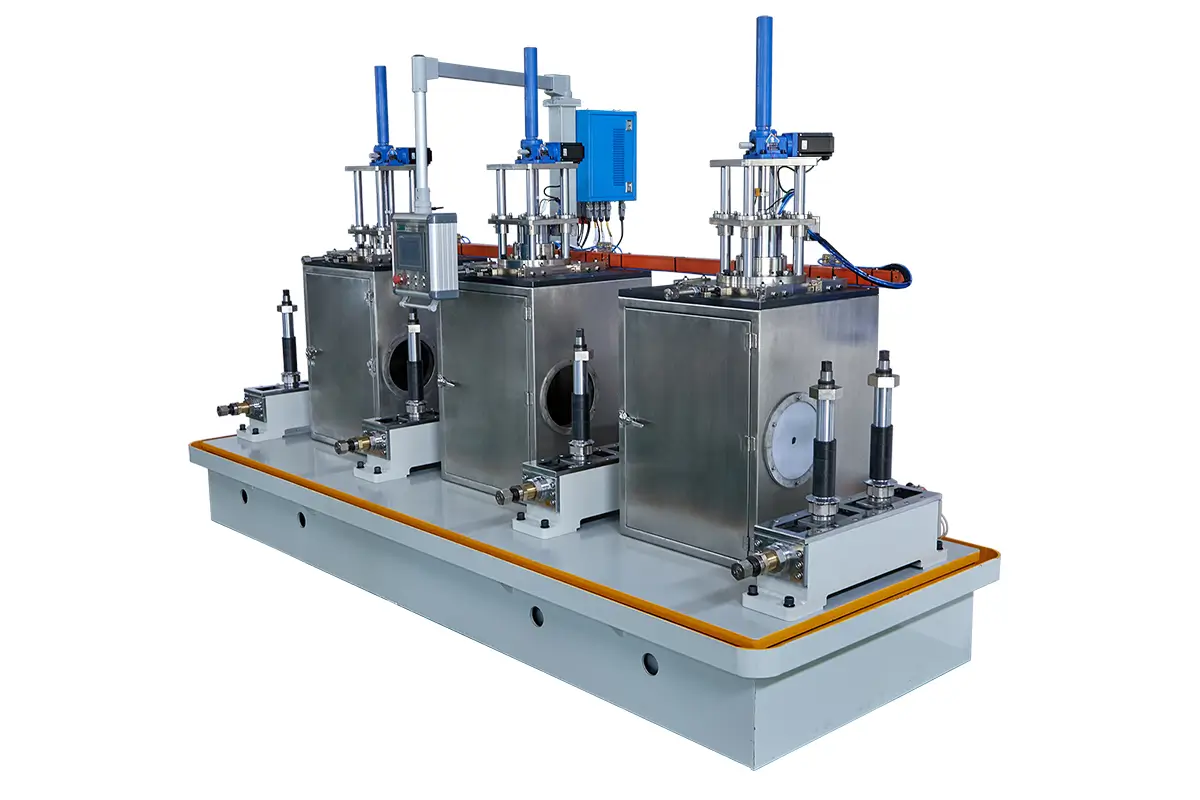

Grinding section

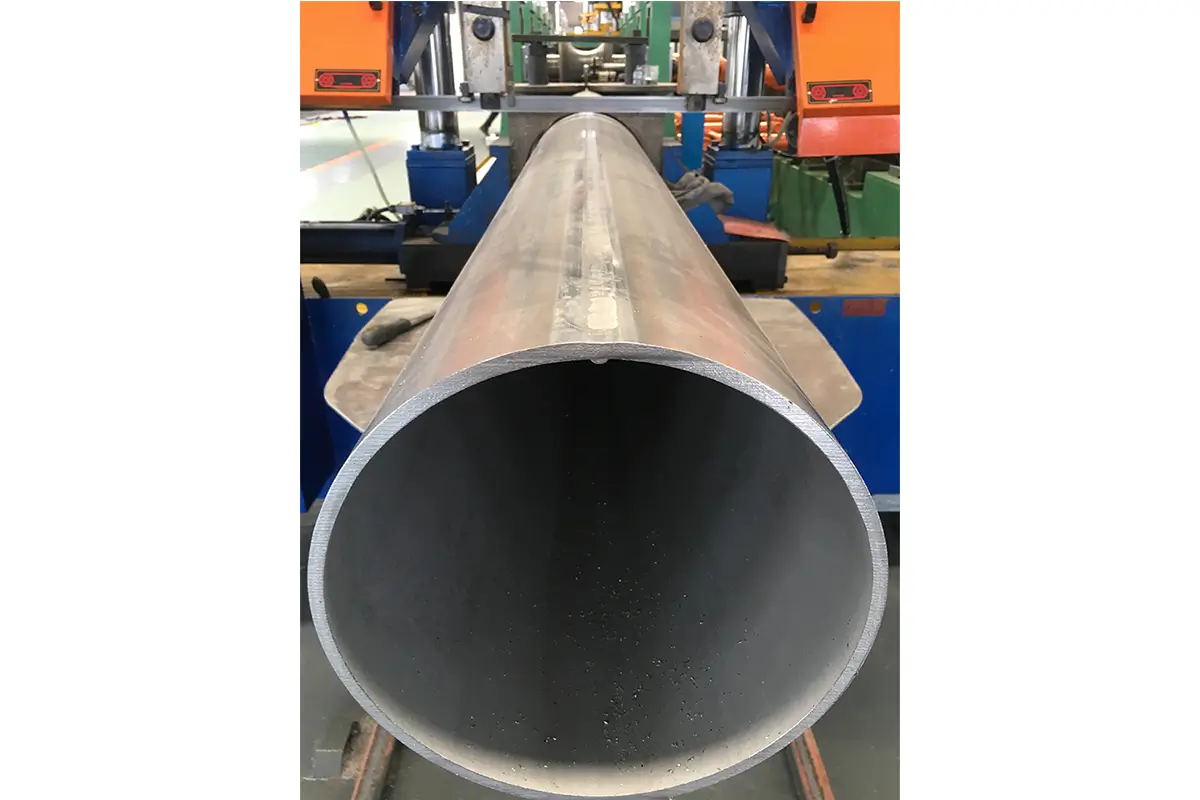

Measuring Cutting
Technical Specifications
| Model | BWT-219-BNT |
|---|---|
| Machine Grade | Industrial Heavy-Duty Type |
| Operating Mode | 24-hour Continuous Operation |
| Pipe Types | Round, Square & Special-Shaped Tubes |
| Applicable Materials | Austenitic Stainless Steel, Duplex Stainless Steel, Ferritic Stainless Steel, Titanium & Titanium Alloys |
| Welding Process | P+T or P+T+T (online double side welding) |
| Heat Treatment | Black Annealling |

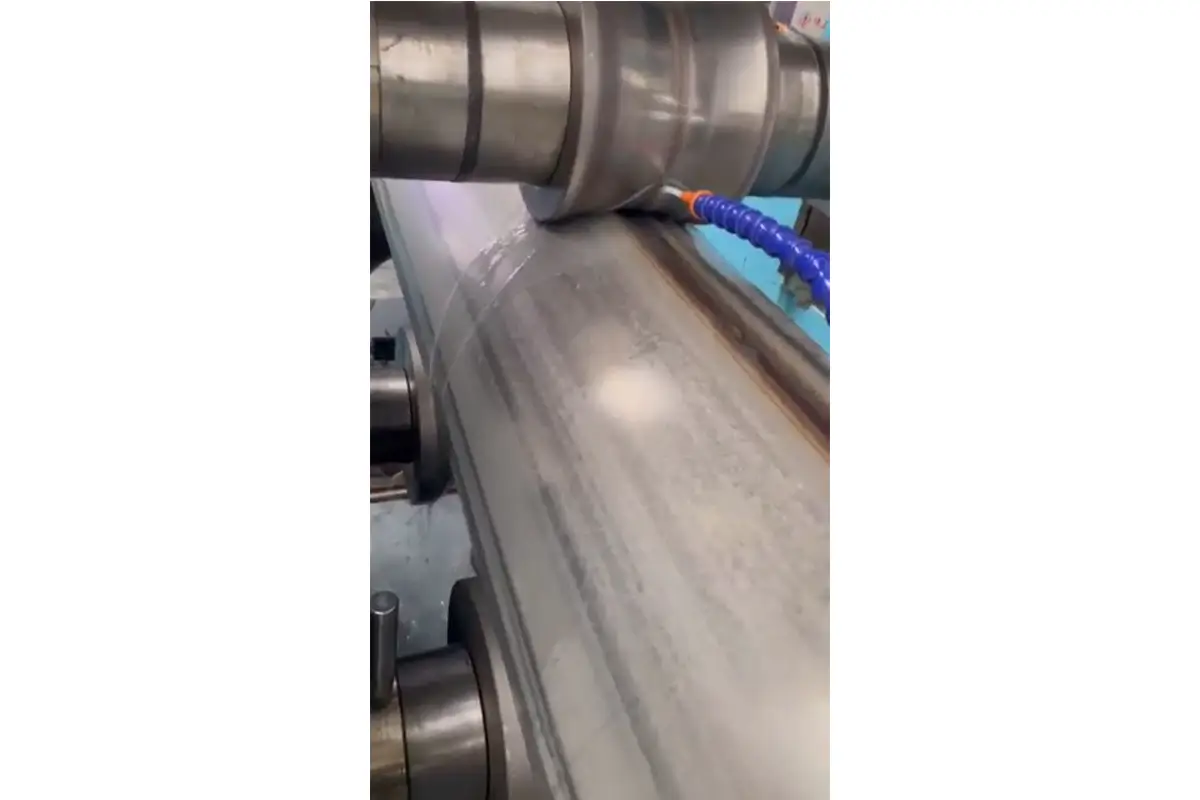

| Weld Seam Flattening | Three-Roll Seam Flattening |
| Main Drive Motor | Variable Frequency Motor |
| Transmission Gearbox | Worm Gearbox |
| Drive Motor Power | 45 kW × 2 |
| Horizontal Shaft Diameter | Ø100 mm |
| Vertical Shaft Diameter | Ø70 mm |
| Upper Roll Adjustment | Synchronous Vertical Adjustment |
| Production Speed Range | 0.3 – 1.5 m/min |
| Tube OD Range | Ø127 – 219.1 mm |
| Tube Length | 3–6 m / 3–12 m |
WHY CHOOSE BWT-219-BNT?
Specialized Stainless Steel Tube Processing
Optimized for stainless steel, duplex steel and titanium alloys, providing excellent forming accuracy and stable large-diameter tube quality.
Precision Welding Performance
P+T or P+T+T online double-side welding delivers reliable weld penetration and consistent tube production.
High Quality Bright Annealing
Black annealing system optimizes tube surface condition and improves corrosion resistance.
Stable Continuous Operation
Three-roll weld seam flattening and worm gearbox ensure accurate transmission and stable 24-hour operation.
Applioations
Titanium and Titanium Alloy Welded Pipes
Structural and Construction Tubes
Oil & Chemical Process Piping
Sanitary-Grade Fluid Pipes
Water & Gas Pipes
Nuclear Power, Aerospace & Marine Tubing
